TZT MFRC-522 RC-522 RC522 Antenna RFID IC Wireless Module For Arduino IC KEY SPI Writer Reader IC Card Proximity Module

$0.58$2.99

Clear
SKU: 10504 Categories: ,


Description

Description:

Current :13-26mA / DC 3.3V

Idle Current :10-13mA / DC 3.3V

Sleep current: <80uA

Peak current: <30mA

Operating Frequency: 13.56MHz

Supported card types: S50, S70, UltraLight, Pro, Desfire

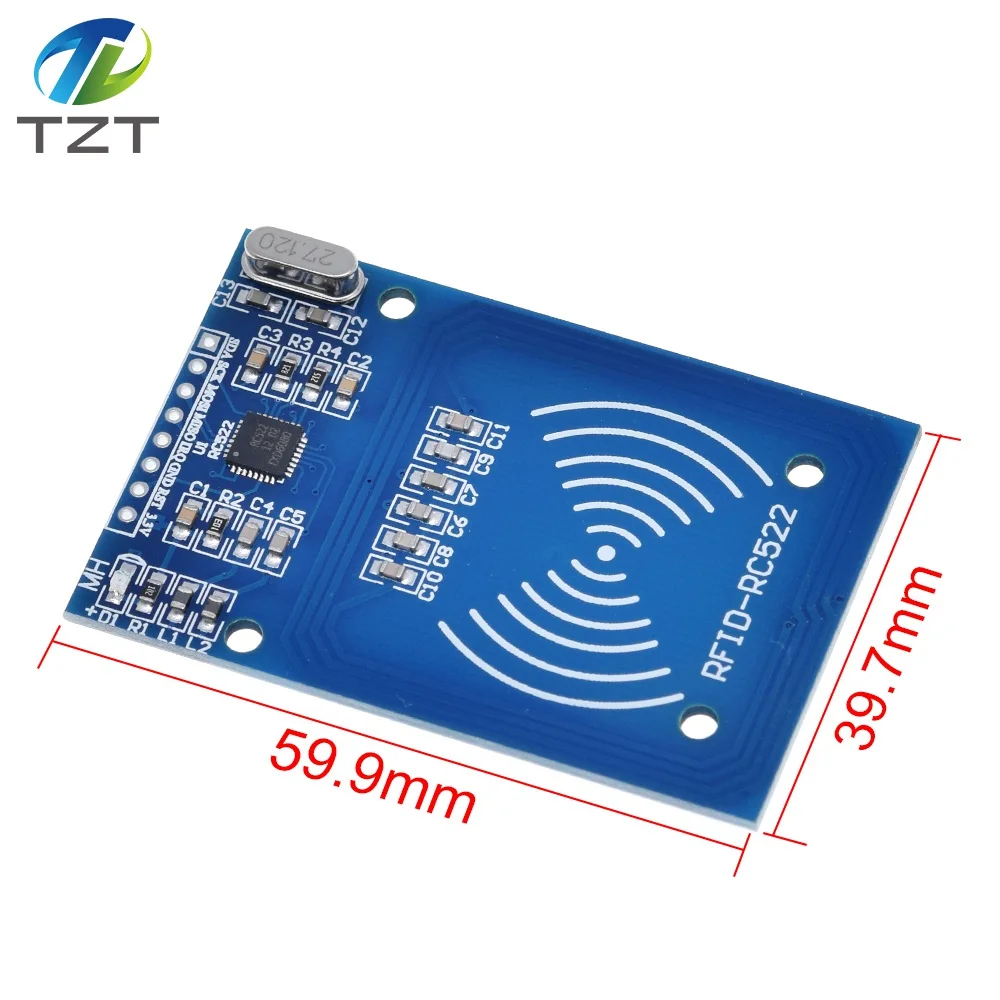

Product Physical Characteristics: Dimensions: 40mm × 60mm

Environmental Operating temperature: -20-80 degrees Celsius

Environment Storage temperature: -40-85 degrees Celsius

Relative Humidity: 5% -95%

Data Transfer Rate: Max. 10Mbit / s

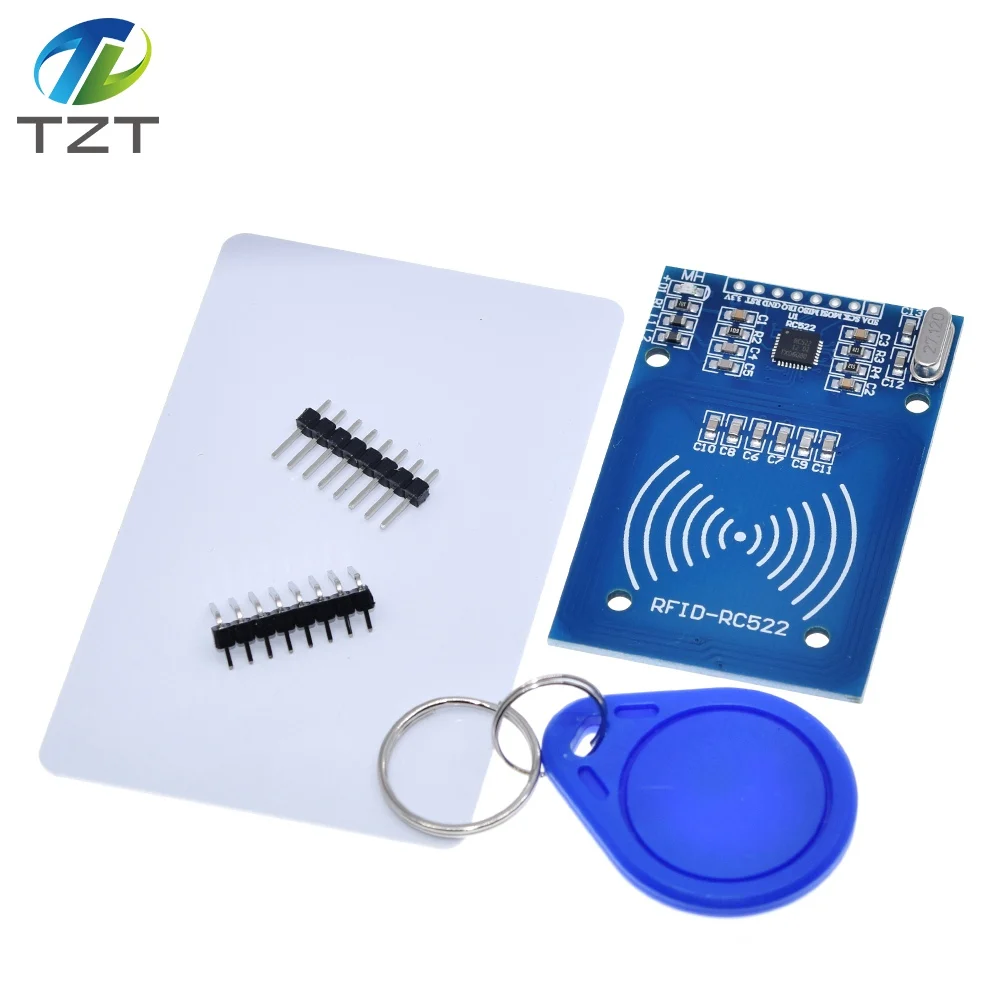

Package Included:

1 X RFID-RC522 module one;

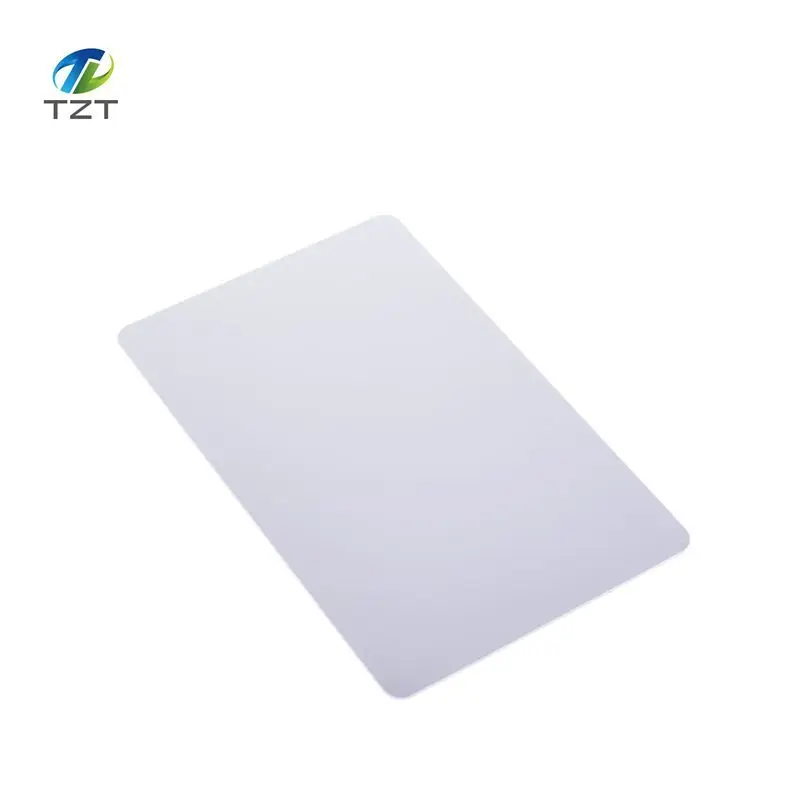

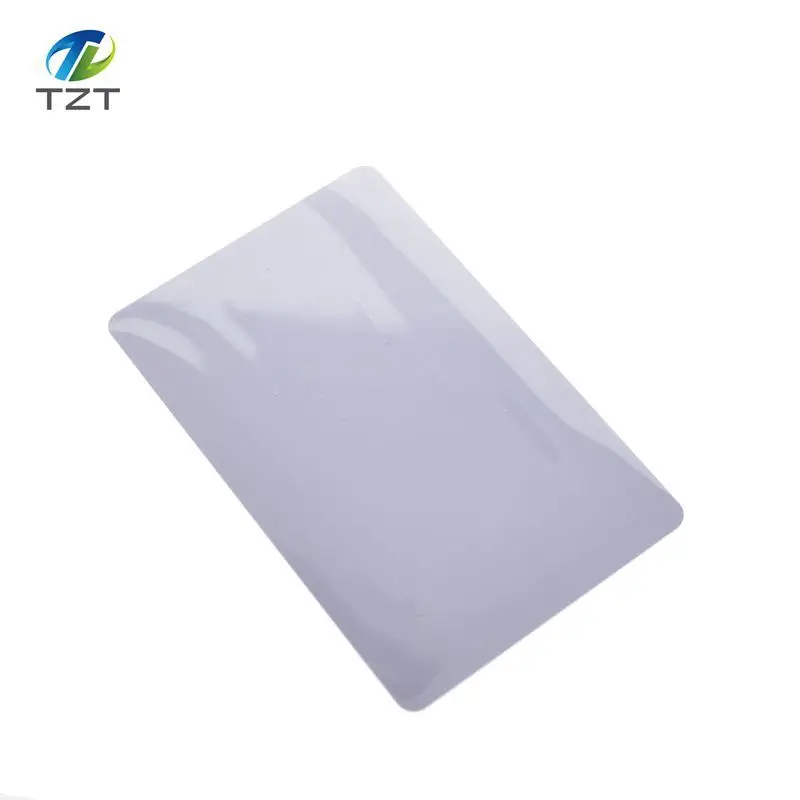

1 X Standard S50 Blank Card;

1 X S50 shaped cards one (as shown keychain shape);

1 X Straight row pin

1 X Curved row pin

Free shipping MFRC-522 RC522 RFID RF IC card inductive module MFRC 522

Additional information

Weight 0.01 kg
Dimensions 8.0 × 8.0 × 8.0 cm
color

IC card, IC key, MFRC-522 1set, MFRC-522 board

Condition

New

Operating Temperature

-40-85 degrees Celsius

Peak current

<30mA

Relative Humidity

5% -95%

Model Number

mfrc-522

Dissipation Power

RC-522

Idle Current

10-13mA / DC 3.3V

Brand Name

TZT teng

Operating Frequency

13.56MHz

Type

Voltage Regulator

Sleep current

<80uA

Supply Voltage

5V

is_customized

Yes

Package

SMD

Application

Alarm

Current

13-26mA / DC 3.3V
